光電對中
Photoelectric centering

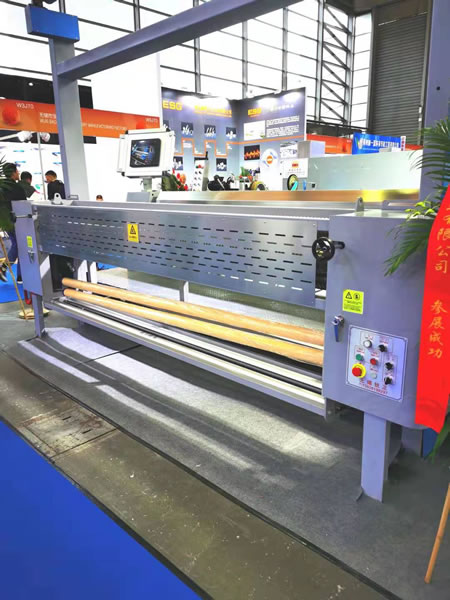

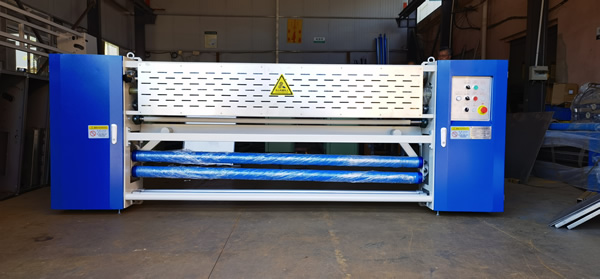

光電對中機，廣泛應用于印染行業燒毛機、水洗機、退煮漂、絲光機、定型機、印花機、烘燥機等機械設備上，能迅速有效地展開織物的折皺，快速平穩地糾正織物的偏移，不受織物的材質和厚薄之影響，保證織物平坦、居中地進入加工設備。本機由三輥開幅和二輥糾偏兩部分組成。開幅效果好，糾偏精度高。適用于各種機織、針織和無紡布等織物。根據使用要求的不同，可將對中傳感器換成對邊傳感器組成光電對邊裝置。
Photoelectric centering machine is widely used in singeing frame machine, rinsing machine, de-sizing- scouring-bleaching, mercerizing machine, setting machine, decorating machine, drying machine and other mechanical equipment of the printing and dyeing industry. It can effectively expand the fabric wrinkle, fast and smoothly correct the deviation of the fabric, not affected by material and thickness of the fabric, ensure the fabric ?at medially and centering enter into the processing equipment.
?不銹鋼擴幅輥：Φ100mmx3支，繞絲Φ4mm或扁絲
?電機功率：750W×2臺
?紅外光電控制系統：一套
?對中校正驅動：氣缸驅動，氣壓0.3MPa
?電源：三相380V AC 50Hz
?裝機容量：動態1.5KVA
?適用門幅：1400-4000mm
?對中精度：±10mm以內
?響應速度：0.5S
?適應環境溫度：-10℃-+5℃
?
Stainless steel spreading roll:Φ100mm × 3 rolls Wire winding Φ 4 mm or ?at ?lament
?Size enlarging motor power: 750W×2 sets
?Infrared photoelectric control system: One set
?Correction driver: Cylinder drive, air pressure 0.3MPa
?Power supply: three-phase 380V AC 50Hz
?Installed capacity: dynamic 1.5KVA
?Applied width of fabric: 1400-4000mm
?Accuracy of alignment: Within 10mm
?Response speed: 0.5S
?Applicable environment temperature: -10°C- +50°C
?三支擴幅輥能夠?qū)⒖椢锿耆归_，織物與擴幅輥的接觸面可以輕松地用手輪調節。
?紅外線光電探測器，全幅無接觸檢測織物偏移；
?氣缸驅動糾偏輥，使織物穩定地保持在中間位置；
?操作方便，動作靈敏，運行可靠。
?Three expander rollers can fully expand the fabric; the contact surface of the fabric and the expanding roller can be easily adjusted by hand wheel
?Infra-red photoelectric detector, full-width non- contact detection fabric offset
?The cylinder drives the rectifying roller to keep the fabric steady in the middle position
?Convenient operation, sensitive action and reliable operation
